TF33.9 115

Find your perfect merlo

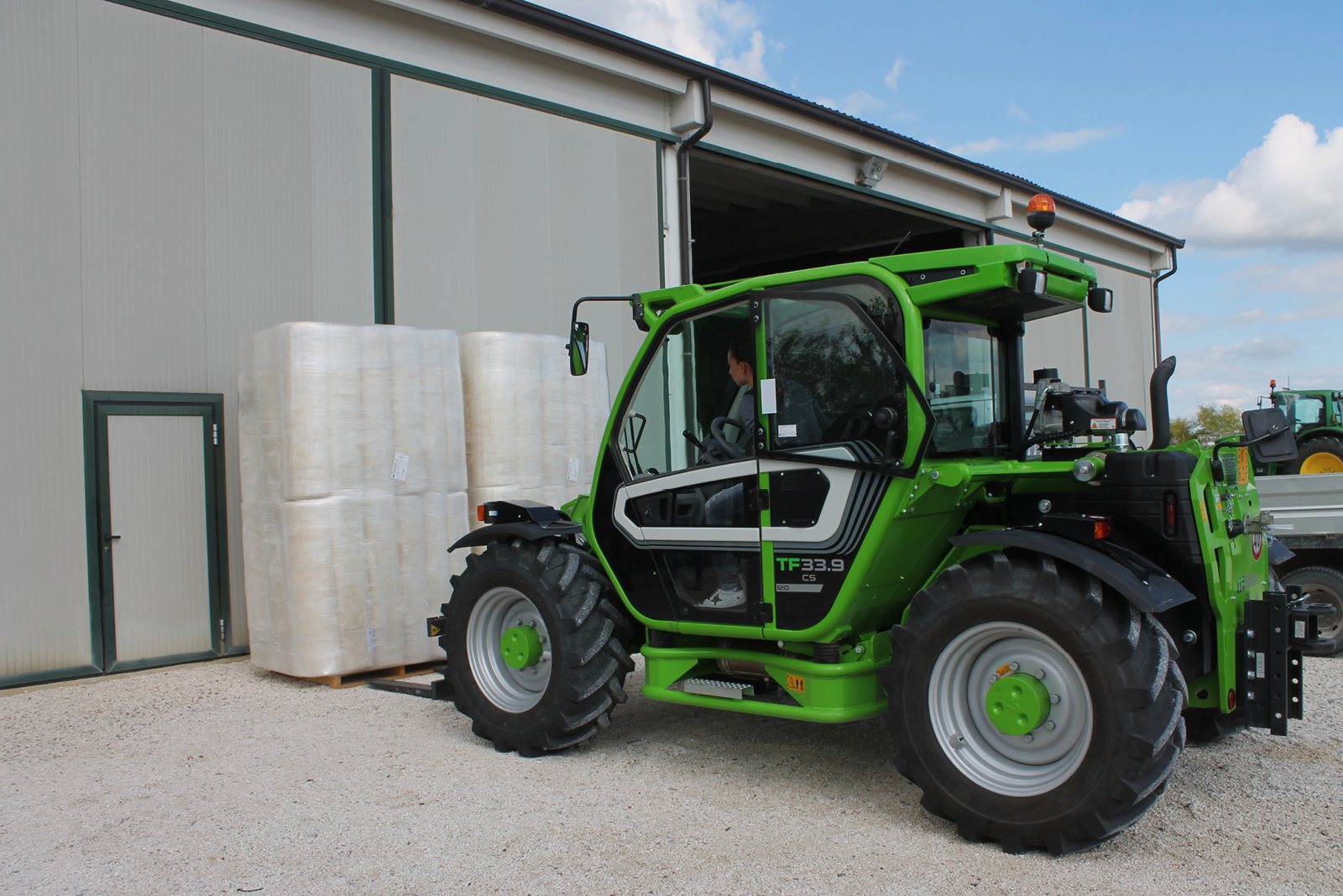

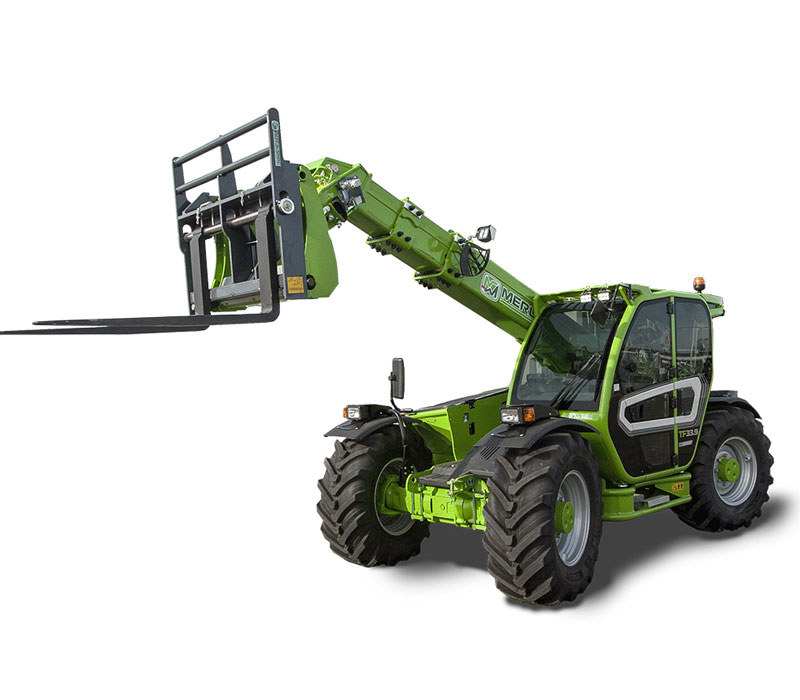

Merlo TF33.9 115 Overview

The TF33.9 models are part of the MEDIUM CAPACITY range, recipient of the Machine of the year 2015 award because of its innovative contents.

The TF33.9 offers increased ground clearance of 420mm and as standard comes on 24″ tyres. This model has a lift capacity of 3.3 tonnes, with a maximum lift height of 8.6 meters.

MODEL FEATURES

  • This range is equipped with a Deutz 115hp engine, 40 km/h Eco Power Drive (EPD) and hydrostatic transmission that automatically control and adjust the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of 18%.
  • On 115 models the EPD TOP system is as standard and offers automatic RPM speed control in relation to joystick movements in order to increase hydraulic performance on demand.
  • The standard cab gives easy access, astounding space with great visibility: generous in dimensions, the cab is mounted on Silent Block, which drastically reduce vibrations, guaranteeing maximum comfort and visibility, whist the option of cab suspension provides a superior ride unique to Merlo.
  • This model come standard with a Reversible Fan, Pick up Hitch, Trailer Braking and Tractor Type Approval for your towing requirements.



Engine: Deutz 3.6 85kW/115Hp

Transmission: Hydrostatic

Hydraulic system: Low Sensing + Flow Sharing 125 l/m 210 Bar

Electronic Joystick

CDC: light Dynamic Load Control

Merlo TF33.9 140CS Overview

The TF33.9 models are part of the MEDIUM CAPACITY range, recipient of the Machine of the year 2015 award because of its innovative contents. This model has a lift capacity of 3.3 tonnes, with a maximum lift height of 8.6 meters. The TF33.9 offers increased ground clearance of 420mm on standard 24″ tyres. MODEL FEATURES
  • The CS model comes with standard Cab Suspension: the exclusive patented and dampened CS with active hydropneumatic suspension, can be switched off directly by the operator. The low frequency system allows the drastic reduction of vibrations inside the passenger compartment and facilitates the absorption of the stress and vibrations transmitted during the transfer and work phases, even on rough grounds.
Merlo is the only one on the market providing such an innovative and effective feature.
  • The TF33.9-140 is equipped with Deutz 140hp Stage V engine in conjunction with the 40km/h Eco Power Drive (EPD) hydrostatic transmission that automatically control and adjust the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of 18%.
  • The TF33.9 comes as standard with the EPD TOP version: this electronic control gives the possibility to vary engine rpm directly with the joystick and to activate the Eco and Speed Control functions, in order to maximize ease of use, performance and above all to reduce fuel consumption.
Heavy Load function, on the other hand, allows the machine's full potential to be exploited in the most demanding contexts, making it particularly useful for those who carry out heavy excavation work.
  • This model comes with the new ASCS system (Adaptive Stability Control System) in Light version. This tool allows ensuring the maximum operational safety of the machine in any condition and with any TreEmme attachments.
A Full version is available as an option: it offers a 10.1” colour screen and it allows:
  • Displaying the capacity diagram, updated in real time
  • Setting and managing the geometric limits of machine use
  • Setting and adjusting the maximum speed of hydraulic movements
  • The premium cab gives easy access, astounding space with great visibility: generous in dimensions, the cab is mounted on Silent Block, which drastically reduce vibrations, guaranteeing maximum comfort and visibility.
This machine comes as standard with:
Engine: Deutz 3.6 Stage V 85kW/140Hp Transmission: Hydrostatic EPD Hydraulic system: Load Sensing + Flow Sharing 125 l/m 210 Bar Capacitive Joystick ASCS: light Adaptive Stability Control System Cab Suspension Reversible fan   ·       Tractor homologation ·       Pick up hitch ·       Electric socket for trailer ·       Hydraulic braking ·       Front and rear diff lock ·       Fork Jack Guards ·       Superior Cab configuration ·       Sun shade ·       Double rear hydraulic line with independent and proportional control ·       LED lights on cab ·       Roof wiper ·       Rear mirror ·       405/70-24 tyres

Merlo TF 33.9 140 Overview

The TF33.9 models are part of the MEDIUM CAPACITY range, recipient of the Machine of the year 2015 award because of its innovative contents. This model has a lift capacity of 3.3 tonnes, with a maximum lift height of 8.6 meters. The TF33.9 offers increased ground clearance of 420mm on standard 24″ tyres. MODEL FEATURES
  • The TF33.9-140 is equipped with Deutz 140hp Stage V engine in conjunction with the 40km/h Eco Power Drive (EPD) hydrostatic transmission that automatically control and adjust the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of 18%.
  • The TF33.9 comes as standard with the EPD TOP version: this electronic control gives the possibility to vary engine rpm directly with the joystick and to activate the Eco and Speed Control functions, in order to maximize ease of use, performance and above all to reduce fuel consumption.
Heavy Load function, on the other hand, allows the machine's full potential to be exploited in the most demanding contexts, making it particularly useful for those who carry out heavy excavation work.
  • This model comes with the new ASCS system (Adaptive Stability Control System) in Light version. This tool allows ensuring the maximum operational safety of the machine in any condition and with any TreEmme attachments.
A Full version is available as an option: it offers a 10.1” colour screen and it allows:
  • Displaying the capacity diagram, updated in real time
  • Setting and managing the geometric limits of machine use
  • Setting and adjusting the maximum speed of hydraulic movements
  • The premium cab gives easy access, astounding space with great visibility: generous in dimensions, the cab is mounted on Silent Block, which drastically reduce vibrations, guaranteeing maximum comfort and visibility, whist the option of Cab Suspension provides a superior ride unique to Merlo.
This machine comes as standard with:
Engine: Deutz 3.6 Stage V 85kW/140Hp Transmission: Hydrostatic EPD Hydraulic system: Load Sensing + Flow Sharing 125 l/m 210 Bar Capacitive Joystick ASCS: light Adaptive Stability Control System Reversible fan   ·       Tractor homologation ·       Pick up hitch ·       Electric socket for trailer ·       Hydraulic braking ·       Front and rear diff lock ·       Fork Jack Guards ·       Superior Cab configuration ·       Sun shade ·       Double rear hydraulic line with independent and proportional control ·       LED lights on cab ·       Roof wiper ·       Rear mirror ·       405/70-24 tyres


Merlo TF33.9 115 G Overview

The TF33.9 models are part of the MEDIUM CAPACITY range, recipient of the Machine of the year 2015 award because of its innovative contents. The TF33.9 offers increased ground clearance of 420mm and as standard comes on 24″ tyres. The lift capacity of 3.3 tonnes can reach the full height of almost 8.6 meters.

MODEL FEATURES

  • The G model differs from the classic for the Gear pump as hydraulic system, which develops a flow rate of 98 l/m per 210 Bar.
  • This range is equipped with a Deutz 115hp engine, 40 km/h Eco Power Drive (EPD) and hydrostatic transmission that automatically control and adjust the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of 18%.
  • The G model includes reversible fan as standard that allows you to change the engine fan’s rotation direction from venting and cooling the radiators, to blowing, which cleans the radiators, eliminating dust and residues collected during the work phase.
  • The standard cab gives easy access, astounding space with great visibility: generous in dimensions, the cab is mounted on Silent Block, which drastically reduce vibrations, guaranteeing maximum comfort and visibility, whist the option of cab suspension provides a superior ride unique to Merlo.
  • Farm Tractor Approval included as standard.


Engine: Deutz 3.6 85kW/115Hp

Transmission: Hydrostatic

Hydraulic system: Gear 98 l/m 210 Bar

Electrohydraulic Joystick

Merlo TF33.9 115 CS Overview

The TF33.9 models are part of the MEDIUM CAPACITY range, recipient of the Machine of the year 2015 award because of its innovative contents. The TF33.9 offers increased ground clearance of 420mm and as standard comes on 24″ tyres. This model has a lift capacity of 3.3 tonnes, with a maximum lift height of 8.6 meters.

MODEL FEATURES

  • The CS model comes with standard Cab Suspension: the exclusive patented and dampened CS with active hydropneumatic suspension, can be switched off directly by the operator. The low frequency system allows the drastic reduction of vibrations inside the passenger compartment and facilitates the absorption of the stress and vibrations transmitted during the transfer and work phases, even on rough grounds. Merlo is the only one on the market providing such an innovative and effective feature.
  • This range is equipped with a Deutz 115hp engine, 40 km/h Eco Power Drive (EPD) and hydrostatic transmission that automatically control and adjust the engine revolutions based on operating conditions. As a result, the engine speed is disconnected from the accelerator pedal. This technology achieves a reduction in fuel consumption of 18%.
  • On 115 models the EPD TOP system is as standard and offers automatic RPM speed control in relation to joystick movements in order to increase hydraulic performance on demand.
  • The standard cab gives easy access, astounding space with great visibility: generous in dimensions, the cab is mounted on Silent Block, which drastically reduce vibrations, guaranteeing maximum comfort and visibility for the operator.
  • This model come standard with a Reversible Fan, Pick up Hitch, Trailer Braking and Tractor Type Approval for your towing requirements.


Engine: Deutz 3.6 85kW/115Hp

Transmission: Hydrostatic

Hydraulic system: Low Sensing + Flow Sharing 125 l/m 210 Bar

Electronic Joystick

CDC: light Dynamic Load Control

Lift Capacity 3300kg

Lift height 8.6 metres

Optional cab Suspension

EPD Top "Speed Control"

Auto revving joystick
