Merlo M12.3 EVO Overview
The multifunctional Cingo is a practical solution for work on different scenarios, from hillsides of mountainous area to hard work in tight spaces. The multifunction Cingo offers maximum traction capacity, maximum ergonomics, easy handling and simplified maintenance.
Thanks to its compact size, the Cingo M12.3 EVO is the ideal multi-functional machine for working in particularly narrow spaces. The 21hp diesel engine and the high attachment angle of the tracks allow the machine to overcome any obstacle, thereby ensuring maximum versatility in all work situation.
The hydrostatic transmission with variable hydraulic pumps and gear motors, coupled with the power of the engine, make this machine a particularly manageable instrument capable of operating in all work conditions. The transmission of torque is directly transmitted to the tracks: this ensures maximum performance and drive transmission capacity.
The integrated parking brake provides excellent dynamic braking, requiring less space for stopping and therefore high safety for the operator and greater precision in carrying out the work: the new compact and reliable solution provides a progressive and safe meshing. Automatically activated when the operator releases the driving levers or when the diesel engine is switched off.
The auxiliary 8-way hydraulic system is fed by double pump at 27+8 litres/min, ensuring excellent management of hydraulic operation of any attachment. Therefore the RH case allows easy inspection of the engine bay for routine maintenance.
Strong rubber tracks suitable for all terrains with low specific pressure. Four oscillating rollers increase the driving comfort and transport safety, dampening the obstacles the machines is facing. Therefore track guides ensure a noise reduction.
The structure dumpers and platform’s shock-absorbing system reduce the vibrations transmitted to the operator, while the large support surface further enhances the driving comfort.
Quick coupling system (Merlo patent)
The attachments for the Multifunctional Cingo system are the winning idea that has freshly defined the concept of multi-purpose for tracked dumpers. There are numerous work tools with new technology available for all models, which increase its potential for use, highlight its versatility and optimise the use in all fields: from construction to agriculture, from recycling to landscape gardening.
It takes just few seconds to connect the desired attachment: a quick and effective respond to the increasingly new demands for lifting, excavating, transporting, loading and unloading with precise handling.
- Capacity 1200 kg
- Machine weight 720 kg
- Length 1850 mm
- Width 1000 mm
- Diesel Engine Kubota 21 hp, 3 cylinders
- Hydrostatic transmission with gear motor and variable hydraulic pumps
- Double gear service pump 8cc + 2.5cc (27 + 8 l/m – 200 bar)
- 8 hydraulic connectors
Max capacity 1200kg
Merlo quick coupling system (patent)
Hydrostatic transmission
Gear motor with integrated parking brake
Low gravity centre
Download Brochure
Spare Parts
Find a dealer
Attachments
DUMPER
Ideal for transporting loose material and for precision unloading.
|
M8.3 PLUS |
M12.3 EVO |
|
| Capacity of the tipper (l) |
400 |
550 |
|
Capacity (kg) |
730 |
1100 |
| Width (mm) |
800 |
920 |

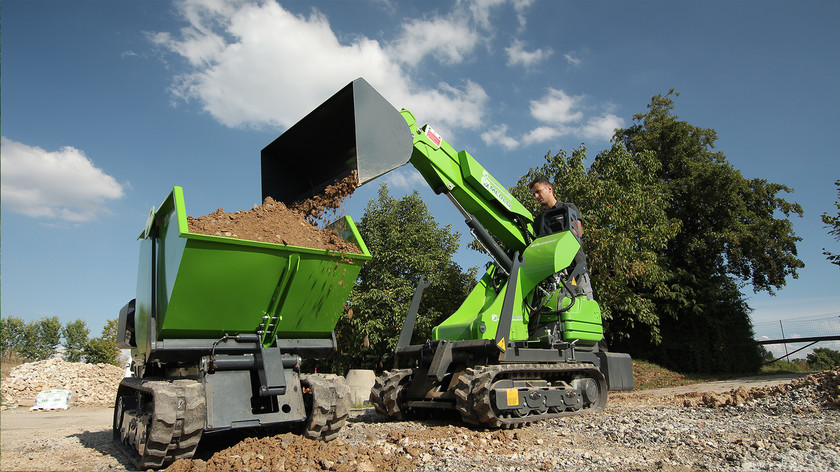

DUMPER WITH SELF-LOADING LOADER
The advantage of the front loader with hydraulic lifting for loading material.
| M8.3 PLUS | M12.3 EVO | |
| Capacity of the tipper (l) |
400 |
550 |
| Capacity (kg) |
655 |
980 |
|
Capacity of the loader (l) |
80 |
90 |
| Width (mm) |
970 |
1080 |
DUMPER WITH HIGH TIPPING
Efficiency in transporting inert materials combined with the versatility of high unloading.
|
M8.3 PLUS |
M12.3 EVO |
|
| Capacity of the tipper (l) |
450 |
450 |
| Capacity (kg) |
610 |
1010 |
| Height of the obstacle (l) |
1300 |
1300 |
| Width (mm) |
850 |
850 |
TIPPER DUMPER WITH SIDES
The versatility of a tipper dumper with sides that when required become an integral part of the load bed, increasing its surface.
|
M8.3 PLUS |
M12.3 EVO |
|
| Capacity (kg) |
720 |
1100 |
| Width with sides closed (mm) |
800 |
1000 |
| Width with sides horizontal (mm) |
1445 |
1650 |
| Height of the sides (mm) |
300 |
300 |
THREE-SIDED TIPPING
The versatility of a tipper dumper with sides that when required become an integral part of the load bed, increasing its surface.
|
M8.3 PLUS |
M12.3 EVO |
|
| Capacity (kg) |
720 |
1100 |
| Width with sides closed (mm) |
800 |
1000 |
| Width with sides horizontally open (mm) |
1445 |
1650 |
| Height of the sides (mm) |
300 |
300 |

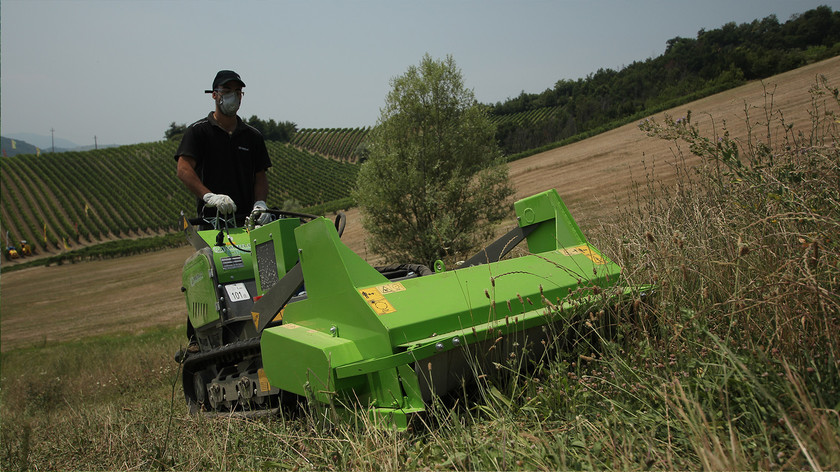

SHRUB SHREDDER
It is ideal to cut pruning residues, tre stumps and small bushes, as well as to clean embankments and footpaths.
|
M8.3 PLUS |
M12.3 EVO |
|
| Working width (mm) |
800 |
1000 |
AUGER
For making precise holes in the ground to house poles, supports or plant young plants.
|
M8.3 PLUS |
M12.3 EVO |
|
| Hole diameter (mm) |
200 |
200 |
| Max working depth (mm) |
800 |
800 |
CHIPPER
Indispensable for shredding pruning residues and resultant wood material, with the advantage of total mobility.
|
M8.3 PLUS |
M12.3 EVO |
|
| Max diameter of the branches (mm) |
110 |
110 |
GRASS MOWERS
An advance hydraulically operated system for precision mowing. The floating function of the bar allows you cut following the roughness of the ground.
|
M8.3 PLUS |
M12.3 EVO |
|
| Width of the moving bar (mm) |
1300 |
1300 |
AGRICULTURAL CULTIVATOR
This attachment allows you to prepare the sowing bed on any degree of slope in gardens, vegetables allotments, greenhouses, vineyards, orchards, and medium-sized pieces of land.
|
M8.3 PLUS |
M12.3 EVO |
|
| Working width (mm) |
800 |
800 |
SPRAYER
Easy to handle and quick, it is ideal for plant protection treatment between the rows of vines when there is little space and the terrain is rough.
|
M8.3 PLUS |
M12.3 EVO |
|
| Tank capacity (l) |
200 |
200 |
WINCH WITH LOADING BED
The benefit of combining a powerful hydraulic towing system with the versatility of a transport vehicle. Ideal in forestry.
|
M12.3 EVO |
|
| Max capacity (kg) |
1000 |
| Max towing capacity (kg) |
1500 |
| Cord length (m) |
50 |
TRENCHER
The trencher is the smallest and strongest digger of its kind and allows you to lay irrigation pipes or electric cables.
|
M8.3 PLUS |
M12.3 EVO |
|
| Digging depth (mm) |
From 0 to 600 |
From 0 to 600 |
| Digging width (mm) |
130 |
130 |
CONCRETE MIXER
Design for mixing concrete in the required amounts, when and where it is needed.
|
M8.3 PLUS |
M12.3 EVO |
|
| Capacity of the concrete mixer (l) |
350 |
350 |
| Concrete output (l) |
300 |
300 |
| Width of the attachment (mm) |
1050 |
1050 |
SELF-LOADING CONCRETE MIXER
To increase productivity by directly providing for the loading of the inherent materials.
|
M8.3 PLUS |
M12.3 EVO |
|
| Capacity of the concrete mixer (l) |
350 |
350 |
| Concrete output (l) |
300 |
300 |
| Width of the attachment (mm) |
1050 |
1050 |
| Capacity of the loader (l) |
40 |
40 |
HAND-HELD HYDRAULIC HAMMER
For carrying out small or large demolition with maximum accuracy and effectiveness.
|
M8.3 PLUS |
M12.3 EVO |
|
| Weight of the attachment (kg) |
20 |
20 |
VERTICAL FORK-LIFT
Ideal for precision handling when high lifting capacity are required.
|
M8.3 PLUS |
M12.3 EVO |
|
| Maximum capacity (kg) |
200 |
400 |
| Lift height (mm) |
1600 |
1800 |
SNOW BLOWER
Hydraulically operated, it has a turbine ejector with manually selectable eject direction.
|
M8.3 PLUS |
M12.3 EVO |
|
| Working width (mm) |
800 |
1000 |
FRONT BLADE
Easy to operate, it allows you to clean the stables, stack loose materials and clear snow.
|
M8.3 PLUS |
M12.3 EVO |
|
| Blade width (mm) |
1100 |
1300 |
| Blade height (mm) |
470 |
470 |
| Blade angle (degrees) |
+/-18 |
+/-18 |
PALLET TRANSPORTER
Ideal solution for lifting and moving pallets on any type of ground.
|
M8.3 PLUS |
M12.3 EVO |
|
| Max capacity (kg) |
400 |
500 |
EXCAVATION UNIT
Design to perform quickly and efficiently digging most types of soils.
|
M8.3 PLUS |
M12.3 EVO |
|
| Excavation depth (mm) |
From 0 to 600 |
From 0 to 600 |
| Excavation width (mm) |
120/180 |
120/180 |
